BSL450

Code Engine Type Power Weight (kg)

230V-50Hz Electric Single-Phase

3 kW – 4 HP

 137

400V-50Hz Electric Three-Phase

4kW – 5,5 HP

 146
Data sheet

DESCRIPTION

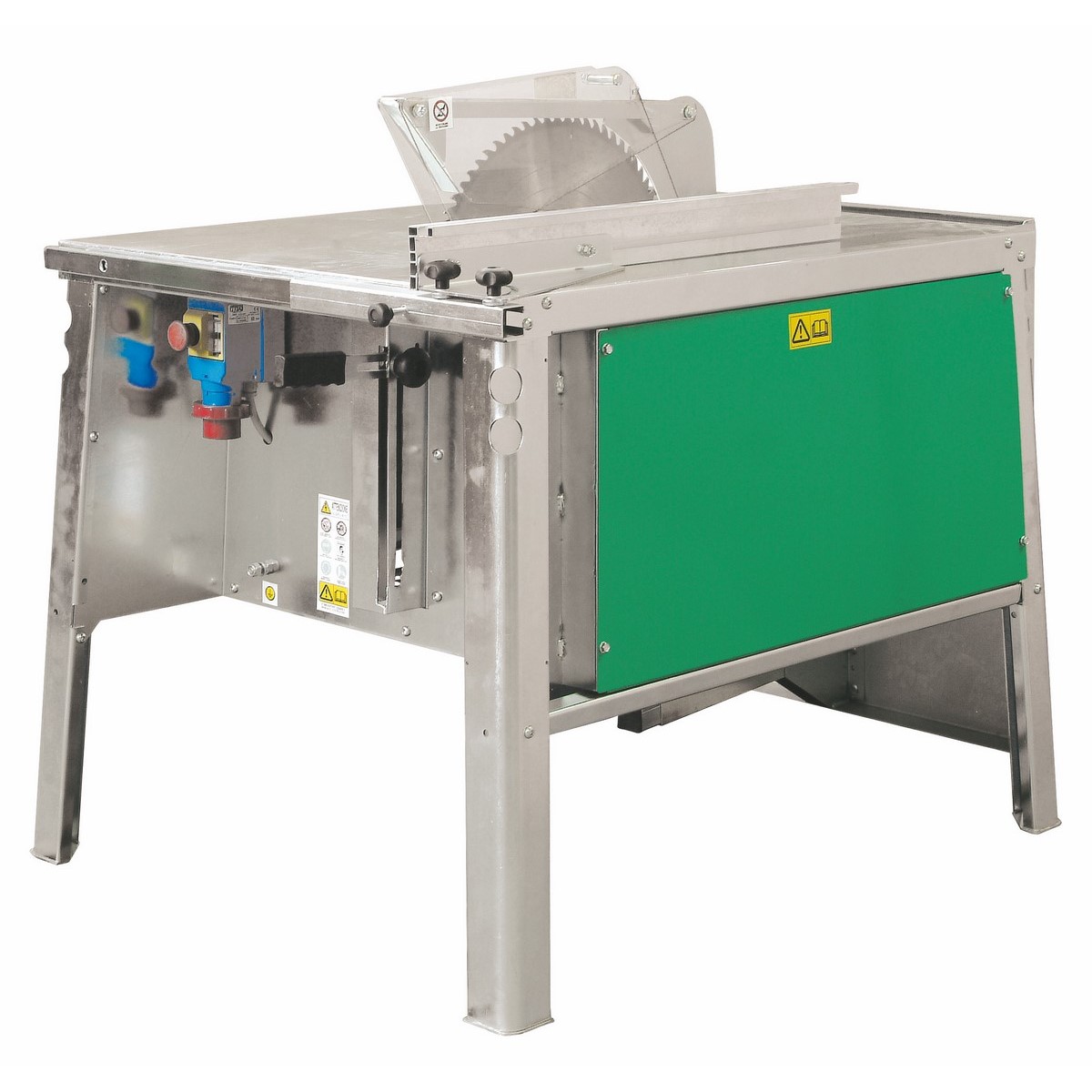

MAKER BSL450 series wood bench saw with belt drive for maximum engine efficiency in continuous service. It is robust, reliable and safe. Suitable for cutting wood, chipboard, plywood, construction boards, for all carpentry work and in carpentry workshops.

Max Widia blade diameter (mm)450
Blade hole diameter (mm)25,4
Height adjustment (mm)0÷160
Engine speed (rpm)2550
Sound emission level (dB)103
Bench sizes (LxWxH in mm)1020x820
Sizes with open worktop (LxW in mm)1750x820
Total overall dimensions (LxWxH in mm)1100x900x1040

Belt drive
Blade guard in polycarbonate
Foldable worktop
Adjustable square from 0° to 90°
Manual lever for cutting height adjustment
Hooking holes for handling on site
Self-braking electric engine ʺMade in Italyʺ
Frame with reinforcement ribs
OPTIONAL
Bench with rollers L=120 mm
STANDARD KIT
Widia blade, technical documentation and CE certificate
