DK250
DK250 - Image 2

DK250

Code Engine Type Power Weight (kg)

230V-50Hz Electric Single-Phase

1,1 kW – 1,5 HP

 41
Data sheet

DESCRIPTION

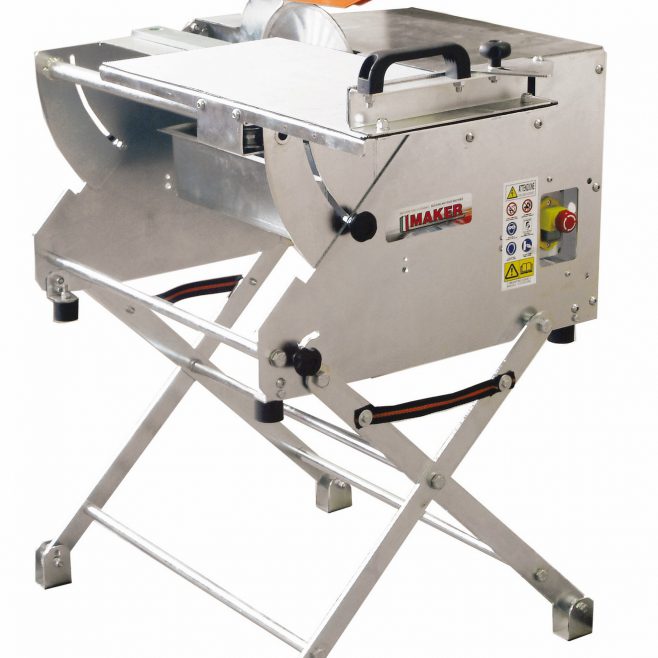

Portable sawing machine is a tile cutter suitable for direct and inclined cuts on ceramic, single-fired, stoneware, klinker, marble, etc. It features a light and compact sheet steel frame, easy to transport and move on two wheels. It can be used on the ground on the floor or on a special stand.

Max blade diameter (mm)250
Blade hole diameter (mm)25,4
Max cutting depth (mm)60
Cutting length (mm)400
Plastic tub capacity (l)14
Tilting cutting0°÷45°
Sound emission level (dB)86
Dimensions (LxWxH in mm)700x620x620 (1100)

Sliding and tilting worktop
360° adjustable square for straight and diagonal cuts
OPTIONAL
Folding stand on wheels 10 kg
STANDARD KIT
Ø 250 mm diamond blade
Technical documentation and CE certificate
