DK350

Code Engine Type Power Weight (kg)

230V-50Hz Electric Single-Phase

2,2 kW – 3 HP

 89

400V-50Hz Electric Three-Phase

3 kW – 4 HP

 89
Data sheet

DESCRIPTION

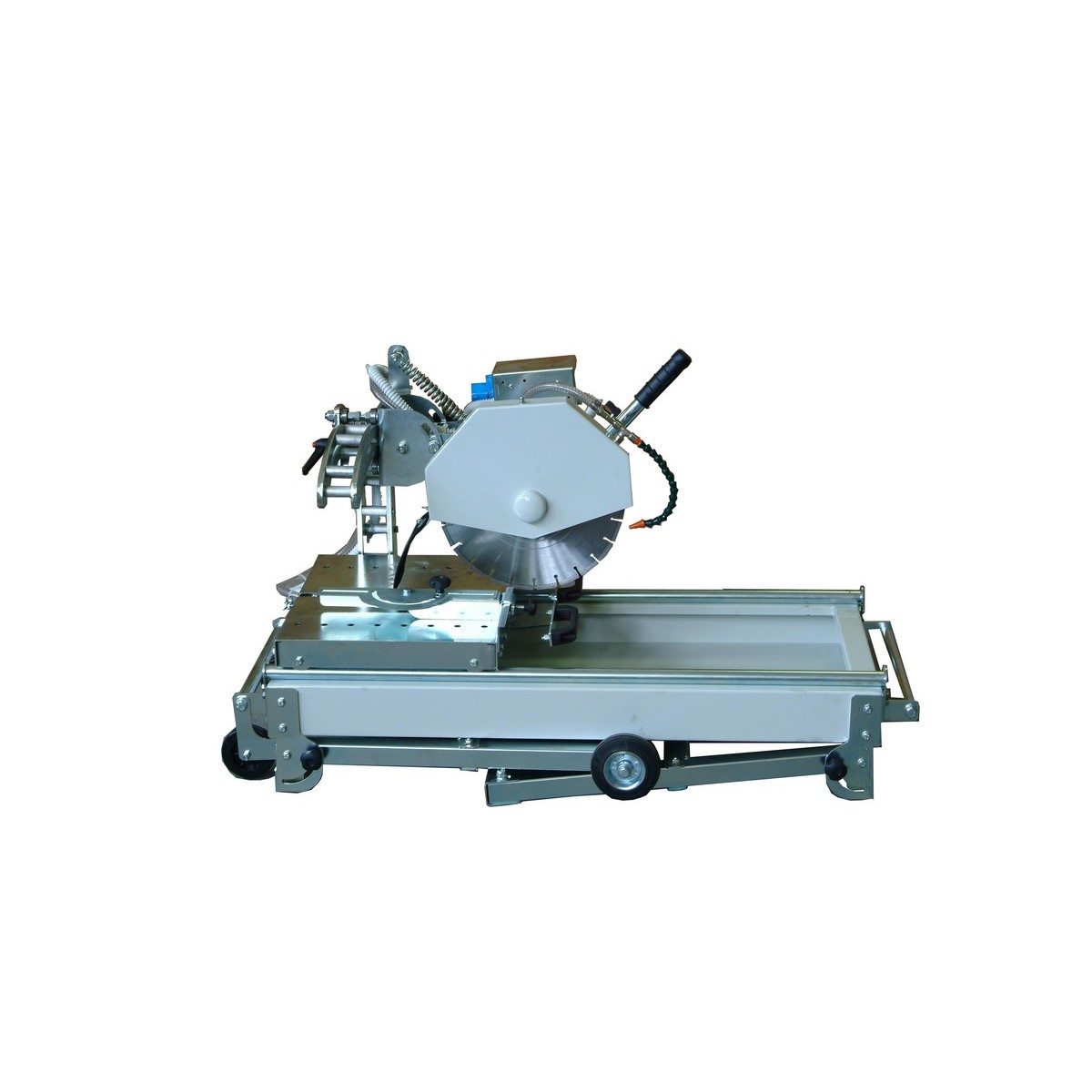

The DK350 saw is easily maneuverable; it guarantees high cutting performance on any type of material. It has a steel sheet frame with a built-in 60-liter tub and an electric pump for recycling; manual advancement of the carriage that slides on watertight bearings and manual adjustment of the cutting height. Its peculiarity is the progressive tilt of the engine head with cutting linearity always in the center of the carriage with any degree of inclination.

Max blade diameter (mm)350
Blade hole diameter (mm)25,4
Max cutting depth (mm)110
Worktop length (mm)400
Cutting length (mm)650 (800)
Sheet tub capacity (l)60
Sound emission level (dB)86
Dimensions (LxWxH in mm)1250x680x1340 (750)

Direct drive
Handle to adjust blade height for different sizes of blocks

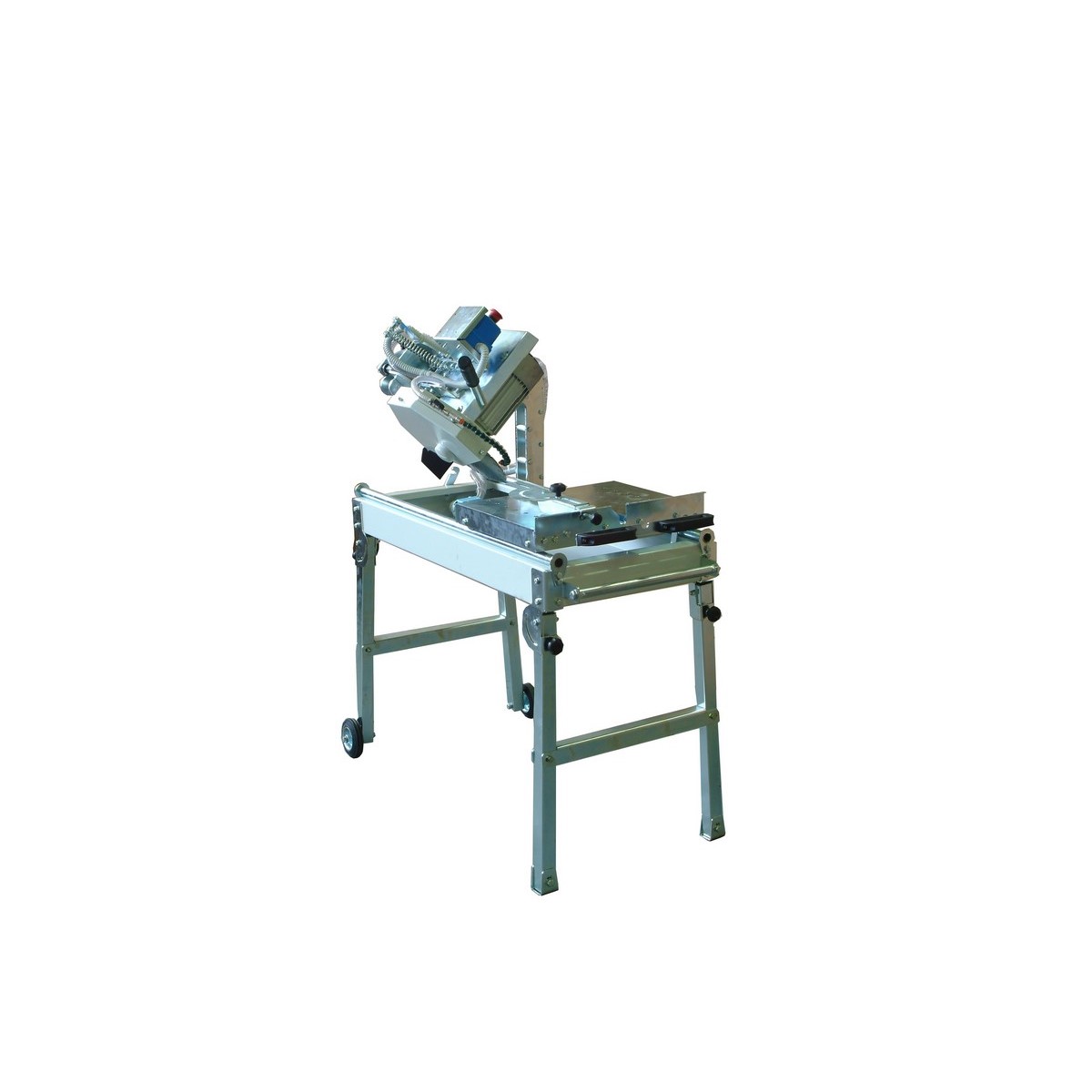

Tiltable head for cutting from 0° to 45°
Water cooling system on the front of the blade to avoid any risk of overheating
Splash guard mat
Immersion electric pump
Sliding work table
360° adjustable square
Folding legs (2 fixed and 2 on wheels) to facilitate use by a single operator
Rear wheels for transport
STANDARD KIT
Ø 350 mm diamond blade
Technical documentation and CE
