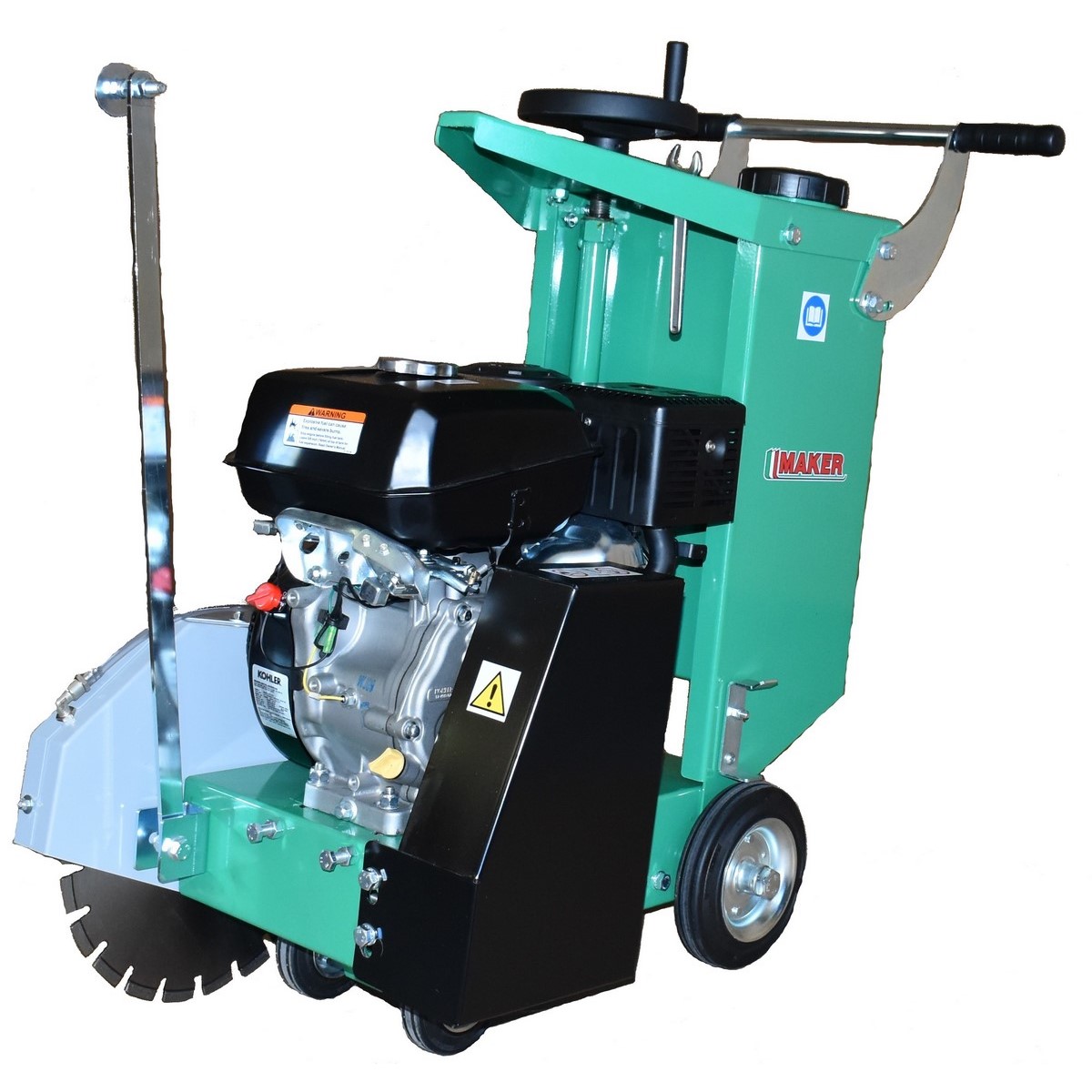

KT400

Code Engine Type Power Weight (kg)

CH395-3209 Kohler petrol

7,1 kW – 9,5 HP

 95

RATO R390 petrol

7,8 kW – 10,6 HP

 97
Data sheet

DESCRIPTION
The LIGHTLINE has been designed to have an economical machine for simple creation but always robust and reliable for cutting jobs on concrete and asphalt.

Max blade diameter (mm)400
Blade hole diameter (mm)25,4
Max cutting depth (mm)140
Steel water tank capacity (l)25
Sound emission level (dB)105
Dimensions (LxWxH in mm)980x570x980

Recoil starter
Operating advancement by hand
Cutting depth adjustment by handwheel with locking system
Adjustable handle
Attachment point for lifting
Blade guard
Blade water cooling system
Splash guard mat
Cutting adjustment index
OPTIONAL
Diamond blade for asphalt and concrete
STANDARD KIT
Technical documentation and CE certificate
