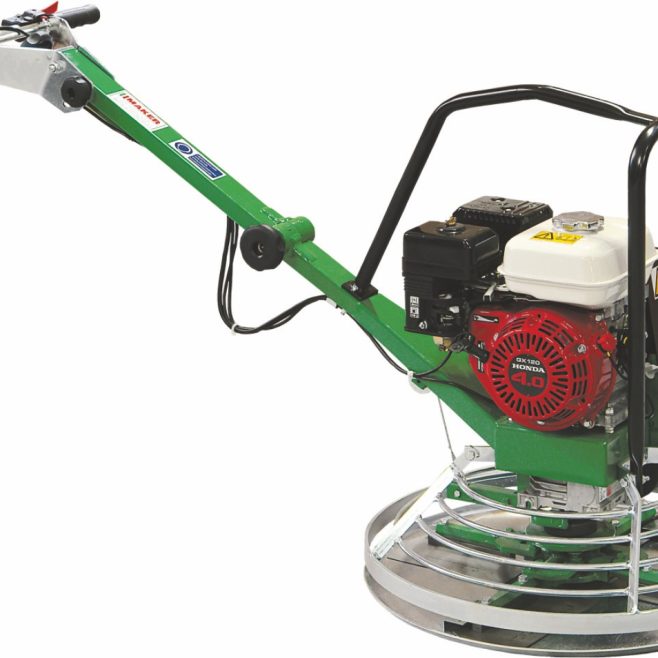

LS60

Code Engine Type Power Weight (kg)

CH270-3215 Kohler petrol

5,2 kW – 7 HP

 57

GX120 Honda petrol

2,4 kW – 3,2 HP

 55

230V-50Hz Electric Single-Phase

2,2 kW – 3 HP

 55

400V-50Hz Electric Three-Phase

2,2 kW – 3 HP

 55
Data sheet

DESCRIPTION
Ideal for leveling concrete floors and all surfaces with little operating space (cellars, garages, etc.).
Also it’s perfect for internal work in flats because being particularly silent, it avoids noise or troubles to the operator and the surrounding environment.

Outside circle diameter (mm)620
Blades rotation diameter (mm)610
Blades rotation speed petrol version (rpm)50÷120
Blades rotation speed electric version (rpm)100
Sound emission level petrol version (dB)102
Sound emission level electric version (dB)74
Dimensions (LxWxH in mm)1400x620x780

Recoil starter
Adjustable handle
Start-stop safety lever
Blade inclination adjustment by handwheel
Folding handle to reduce the dimensions in the transfers
Engine guard with attachment point for lifting
Protection circle with 5 rings for added security
Electric version with double insulation and low voltage control
OPTIONAL
Set of 4 finishing blades dim.(Lxl) 230×120 mm
Smoothing plate with edge Ø 630 mm
Finishing plate without edge Ø 670 mm
Nylon brush Ø 600 mm
Steel brush Ø 600 mm
STANDARD KIT
Set of 4 finishing blades, smoothing plate, technical documentation and CE certificate
