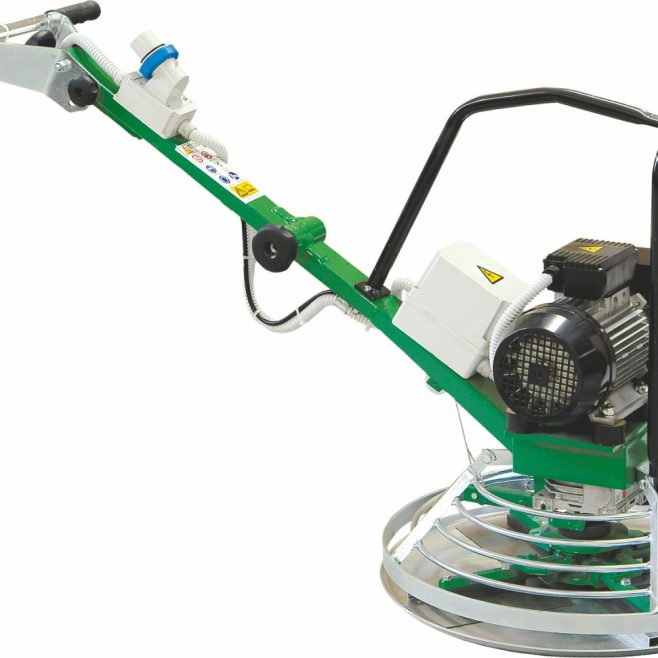

LS75 MOTOINVERTER

LS75 MOTOINVERTER

Code Engine Type Power Weight (kg)

400V-50Hz Electric Three-Phase

2,2 kW – 3 HP

 60
Data sheet

DESCRIPTION
CONTINUOUS VARIABLE SPEED MOTOR WITH INVERTER, CONNECTED TO 230V-50Hz (SINGLE-PHASE) OR 400V-50Hz (THREE-PHASE)

Outside circle diameter (mm)750
Blades rotation diameter (mm)730
Blades rotation speed (rpm)30÷130
Sound emission level (dB)74
Dimensions (LxWxH in mm)1400x750x780

Adjustable handle
Start-stop safety lever
Folding handle to reduce the dimensions in the transfers
Blade inclination adjustment by handwheel
Engine guard with attachment point for lifting
Protection circle with 5 rings for added security
OPTIONAL
Set of 4 combination blades dim.(Lxl) 270×120 mm
Smoothing plate with edge Ø 750 mm
STANDARD KIT
Set of 4 blades
Technical documentation and CE certificate
