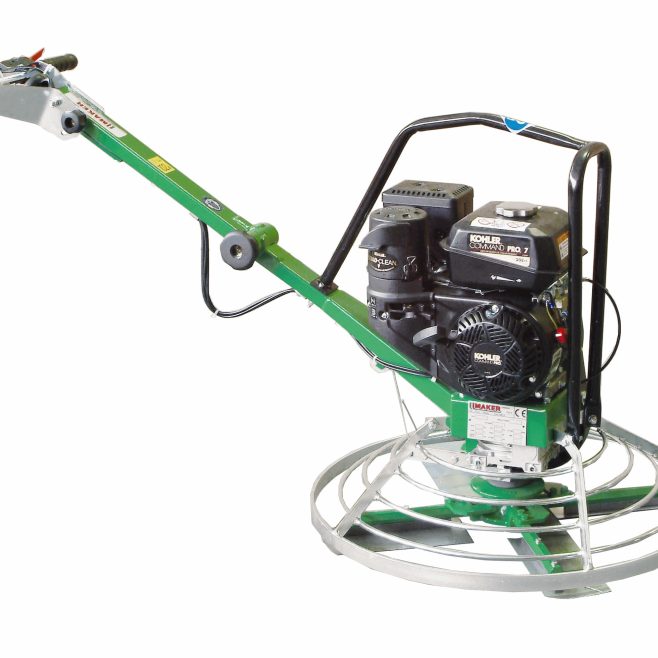

LS75

Code Engine Type Power Weight (kg)

CH270-3215 Kohler petrol

5,2 kW – 7 HP

 62

GX160 Honda petrol

3,6 kW – 4,8 HP

 60

230V-50Hz Electric Single-Phase

2,2 kW – 3 HP

 60

400V-50Hz Electric Three-Phase

2,2 kW – 3 HP

 60
Data sheet

DESCRIPTION
Particularly suitable for working inside apartments, foundations, garages and small outdoor areas, sidewalks and small surfaces. The folding handle facilitates the operator to find the correct working position.

Outside circle diameter (mm)750
Blades rotation diameter (mm)730
Blades rotation speed (rpm)50÷120
Blades rotation speed (rpm)100
Sound emission level (dB)102
Sound emission level (dB)74
Dimensions (LxWxH in mm)1400x750x780

Recoil starter
Adjustable handle
Start-stop safety lever
Blade inclination adjustment by handwheel

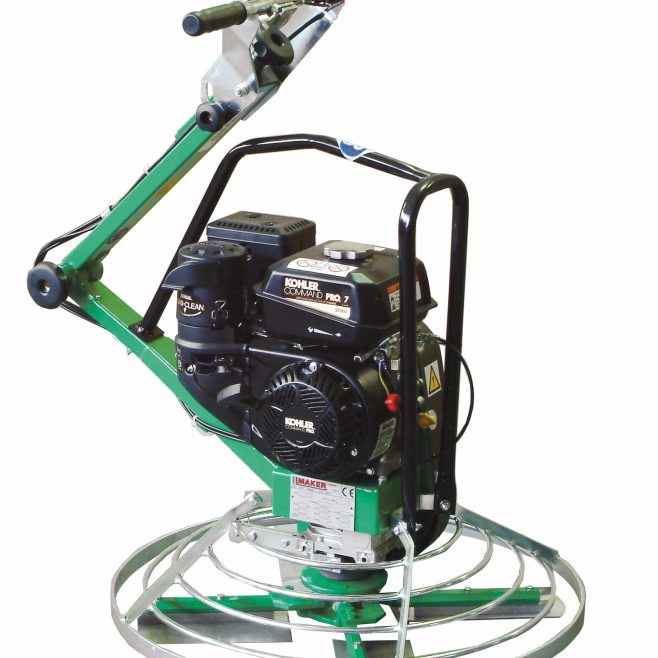

Folding handle to reduce the dimensions in the transfers
Engine guard with attachment point for lifting
Protection circle with 5 rings for added security
Electric version with double insulation and low voltage control
OPTIONAL
Set of 4 combination blades dim.(Lxl) 270×120 mm
Smoothing plate with edge Ø 750 mm
STANDARD KIT
Set of 4 combination blades, technical documentation and CE certificate
