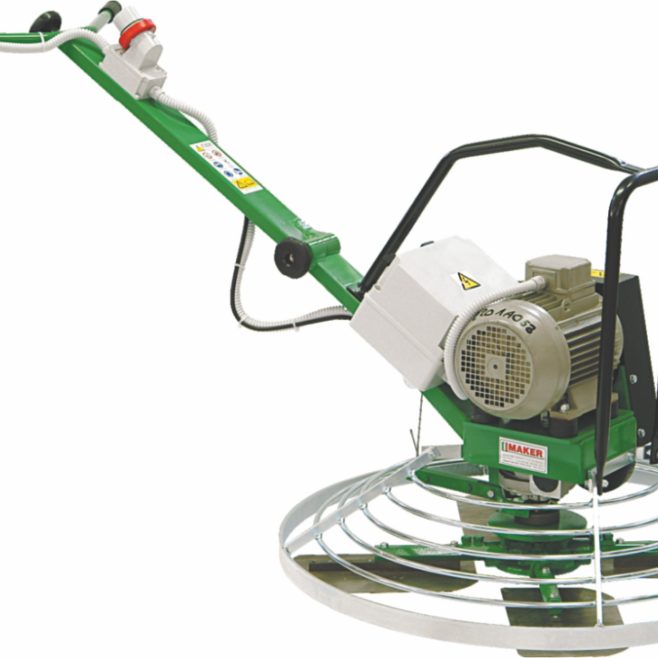

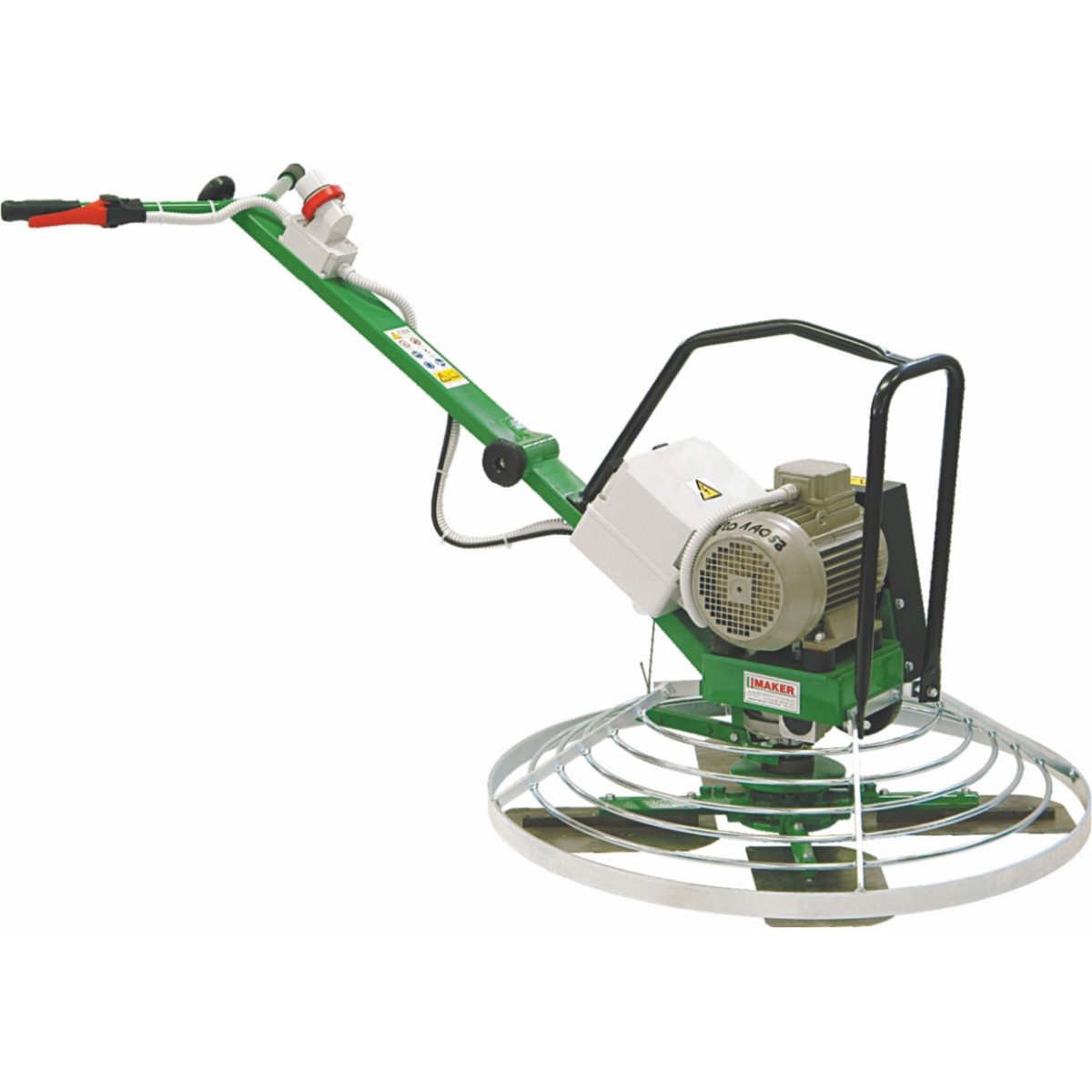

LS90 MOTOINVERTER

LS90 MOTOINVERTER

Code Engine Type Power Weight (kg)

400V-50Hz Electric Three-Phase

2,2 kW – 3 HP

 88
Data sheet

DESCRIPTION
CONTINUOUS VARIABLE SPEED MOTOR WITH INVERTER, CONNECTED TO 400V-50Hz (THREE-PHASE)

Outside circle diameter (mm)920
Blades rotation diameter (mm)900
Blades rotation speed (rpm)30÷130
Sound emission level (dB)74
Dimensions (LxWxH in mm)1800x920x800

Adjustable handle
Start-stop safety lever
Folding handle to reduce the dimensions in the transfers
Blade inclination adjustment by handwheel
Engine guard with attachment point for lifting
Protection circle with 5 rings for added security
OPTIONAL
Set of 4 finishing blades dim.(Lxl) 330×150 mm
Set of 4 floating blades dim.(Lxl) 330×280 mm
Set of 4 combination blades dim.(Lxl) 330×200 mm
Smoothing plate Ø 930 mm

STANDARD KIT
Set of 4 blades, technical documentation and CE certificate
