MB90

MB90

Code Engine Type Power Weight (kg)

GX690 Honda petrol (two-cylinder with electric starter – with crossed blades)

18 kW – 24 HP

 288

GX690 Honda petrol (two-cylinder with electric starter – with smoothing plates)

18 kW – 24 HP

 324
Data sheet

DESCRIPTION

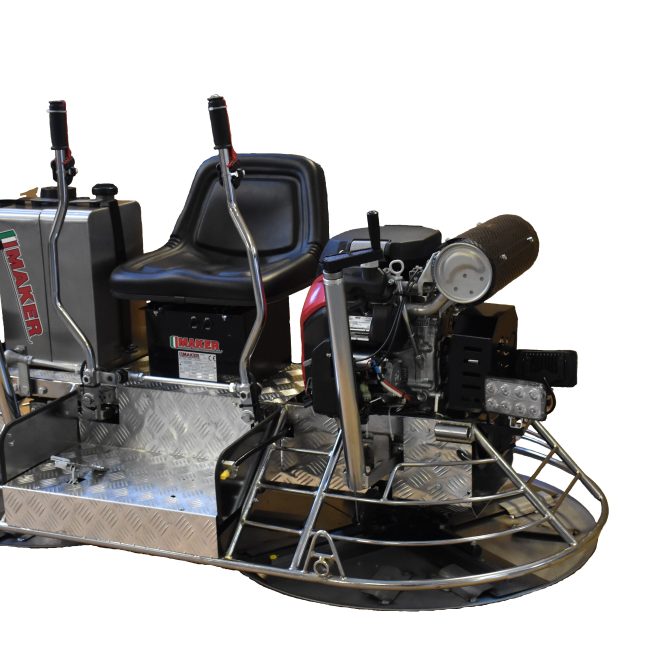

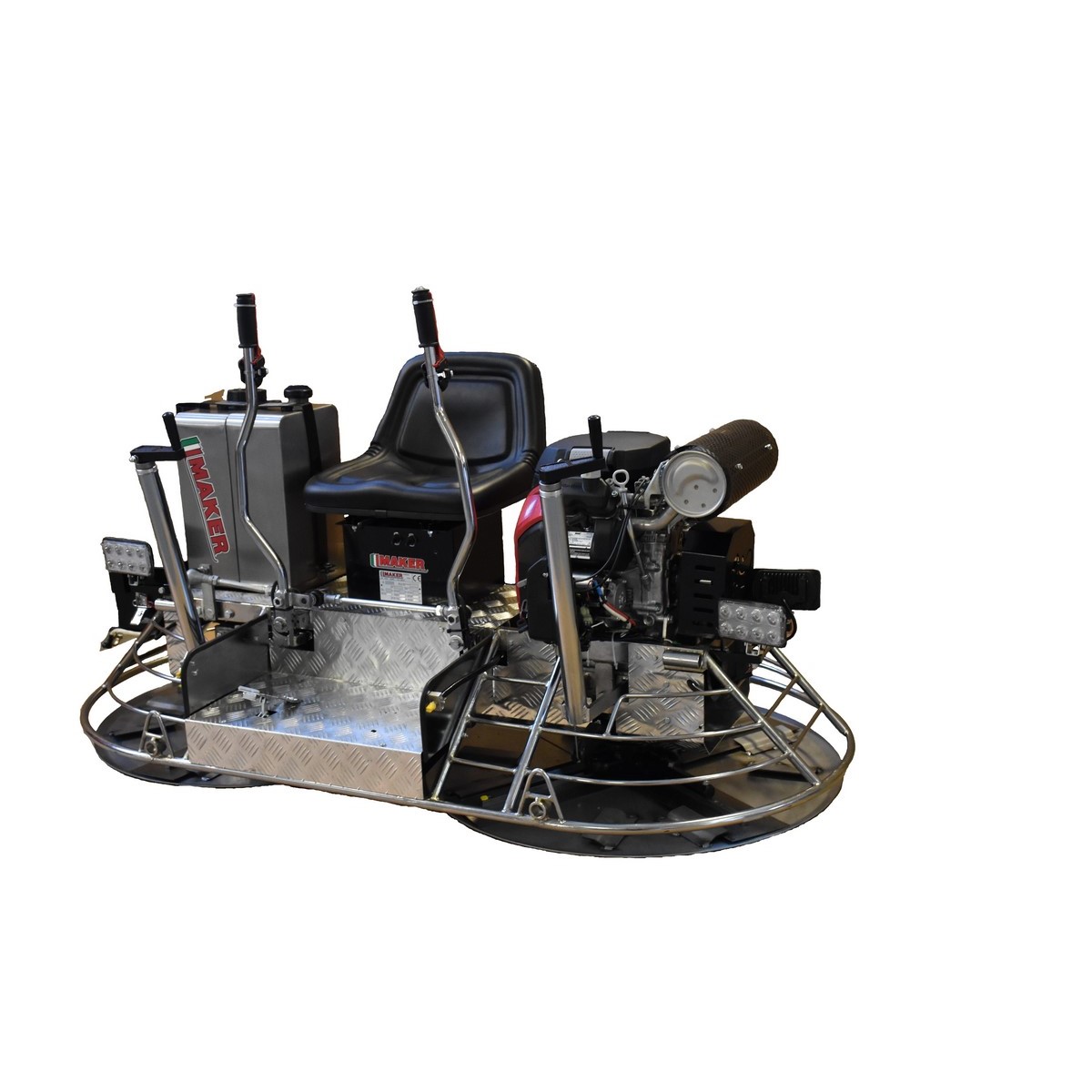

Suitable for medium-large industrial floors, it allows users to quickly work cycles. The central seat is adjustable, allowing the operator to find the most comfortable and practical position to maneuver all the control levers without tiring. It is available in two versions: with crossed blades or with smoothing plates.

Double trowel with two rotors (mm)900
Blades rotation speed (rpm)40÷150
Water tank capacity (l)30
Sound emission level (dB)107
Dimensions (LxWxH in mm)2000x1000x1200

Electric starter
Two maneuvering handles
Safety device
Pedal accelerator
Central and adjustable seat
Illumination headlights
OPTIONAL
Set of 4 finishing blades dim.(Lxl) 355×150 mm
Set of 4 floating blades dim.(Lxl) 355×250 mm
Set of 4 combination blades dim.(Lxl) 355×200 mm
Transport trolley
STANDARD KIT
Set of 4 finishing blades and 4 floating blades, technical documentation and CE certificate
