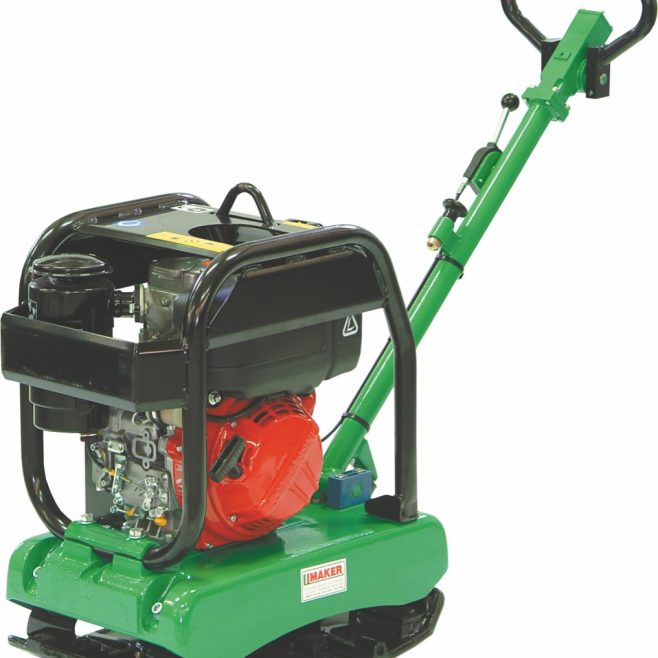

MX120

DESCRIPTION
Sturdy and easily maneuverable plates. They are used to compact sand, gravel, stones and bituminous asphalts, in the construction of tracks, roads, railways, trenches, canals and in the laying of self-locking floors. The work progress takes place in the two directions of travel, forward and backward, by means of a hydraulic system with lever control. Directional change carried out in maximum safety thanks to the reverse gear protection device.

Plate dimensions (LxW in mm)	630x400
Centrifugal force (kN)	21
Frequency (Hz)	90
Speed (m/min)	25÷30
Depth (cm)	30÷50
Sound emission level (dB)	106
Dimensions (LxWxH in mm)	630x400x1020

Height-adjustable guide bar
Engine guard with attachment point for lifting
Double anti-vibration system
OPTIONAL
Transport wheels kit Ø 260×85 mm
Water tank (capacity 14 l)
Vulkollan rubber mat for self- locking
STANDARD KIT
Transport wheels kit, technical documentation and CE
