RVM200

RVM200

Code Engine Type Power Weight (kg)

CH270-3215 Kohler petrol

5,2 kW – 7 HP

 270

GX160 Honda petrol

3,6 kW – 4,8 HP

 267

KD15 350 Kohler Diesel

5,1 kW – 6,8 HP

 289
Data sheet

DESCRIPTION

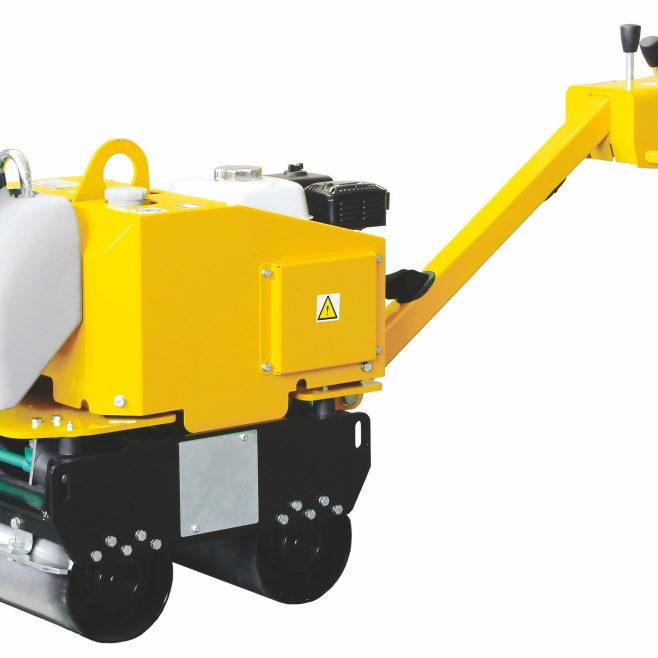

Ideal for compacting any type of terrain and asphalt. Construction is simple and inexpensive but guarantees high performance. Very compact, it allows you to work parallel to the sidewalks and in small spaces. Its high centrifugal force makes it suitable to replace even heavier machines with the same performance and greater maneuverability.

Roller diameter (mm)218
Roller width (mm)540
Edge height (mm)155
Centrifugal force (kN)12
Frequency (Hz)75
Speed (forward gear) (km/h)0÷5
Speed (reverse gear) (km/h)0÷2,5
Depth (cm)30÷45
Water tank capacity (l)14
Sound emission level (dB)105
Dimensions (LxWxH in mm)900x650x1360

Folding and cushioned steering tiller to reduce vibrations
Handle equipped with safety device, emergency lever, throttle lever and lever that operates progressive forward or reverse
Central attachment point plus 4 side eyelets for lifting and transport
Double anti-damping system
High resistance polyethylene pipe for the distribution of water to the rollers
Scrapers for cleaning the rollers
STANDARD KIT
Water tank, technical documentation and CE
