RVM350
RVM350 - Image 2

RVM350

Code Engine Type Power Weight (kg)

CH270-3215 Kohler petrol

5,2 kW – 7 HP

 330

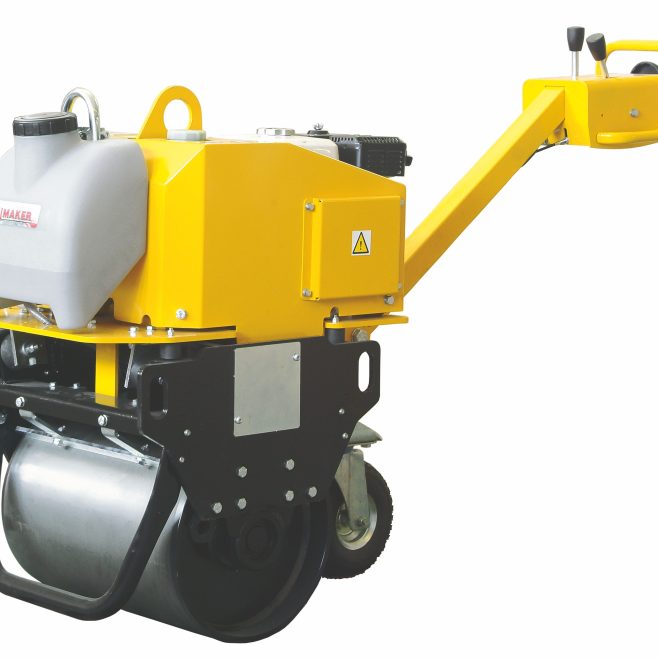

GX160 Honda petrol

3,6 kW – 4,8 HP

 327

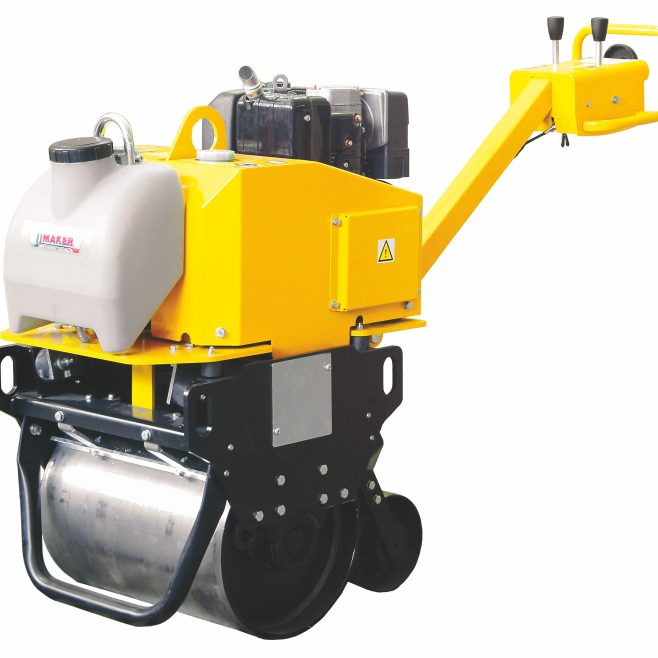

KD15 350 Kohler Diesel (electric starter)

5,1 kW – 6,8 HP

 398
Data sheet

DESCRIPTION
Ideal for compacting any type of terrain and asphalt. The structure is simple and economical, but guarantees high performance. Very compact, it allows you to work parallel to the sidewalks and in small spaces. Its high centrifugal force makes it suitable to replace even heavier machines with the same performance and greater maneuverability.

Roller diameter (mm)402
Roller width (mm)560
Edge height (mm)230
Centrifugal force (kN)16
Frequency (Hz)75
Speed (forward gear) (km/h)0÷5
Speed (reverse gear) (km/h)0÷2,5
Depth (cm)30÷45
Water tank capacity (l)14
Sound emission level (dB)105
Dimensions (LxWxH in mm)900x670x1560

Folding and cushioned steering tiller to reduce vibrations
Handle equipped with safety device, emergency lever, throttle lever and lever that operates progressive forward or reverse
Hydrostatic transmission with progressive speed control forward and reverse at reduced speed
Central attachment point plus 4 side eyelets for lifting and transport
Double anti-damping system
Rollover protection tube
Scrapers for cleaning the rollers
Swivel wheel for agile movement of the machine in the working direction

STANDARD KIT
Water tank, full swivel wheel, technical documentation and CE certificate
