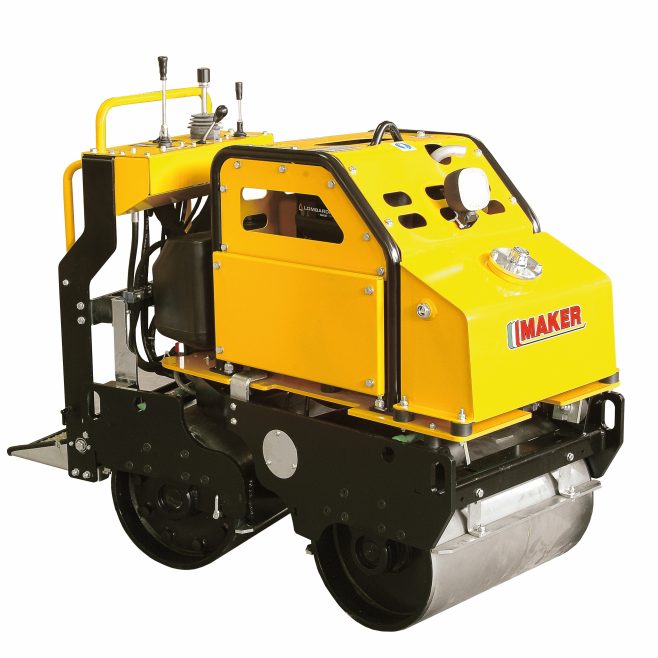

RVS970
DESCRIPTION
Ideal for compacting any type of terrain and asphalt. It has a double drum with a fully hydrostatic transmission system and articulated to facilitate work maneuvers. The machine having no protruding parts can work very close to the sidewalks on both sides and in small spaces. The high centrifugal force makes it suitable to replace even heavier machines with the same efficiency and greater maneuverability.
| Roller diameter (mm) | 402 |
| Roller width (mm) | 650 |
| Edge height (mm) | 230 |
| Centrifugal force (kN) | 26 |
| Frequency (Hz) | 65 |
| Speed (forward gear) (km/h) | 0÷5 |
| Speed (reverse gear) (km/h) | 0÷2,5 |
| Depth (cm) | 30÷45 |
| Steering angle (degrees) | 17 |
| Internal steering radius (m) | 14 |
| Water tank capacity (l) | 30 |
| Sound emission level (dB) | 105 |
| Dimensions (LxWxH in mm) | 1350x700x1350 |
Forward and reverse movement control lever with emergency STOP device
Right and left lever
Vibration lever
Hydrostatic transmission with progressive speed control forward and reverse at reduced speed
Acoustic signal of forward and backward movement
Central attachment point plus 4 side eyelets for lifting and transport
Lighthouse for night work or in work environments with poor visibility
Pump protection locking valve
Oil level indicator
Anti-damping platform with safety device (man on board standing)
Double anti-damping system
Hydraulic parcking brake
Scrapers for cleaning the rollers
STANDARD KIT
Water tank, lighthouse, reversing signal, technical documentation and CE certificate
