TK450

Code Engine Type Power Weight (kg)

CH440-3234 Kohler petrol

10,5 kW – 14 HP

 145

GX390 Honda petrol

8,7 kW – 11,7 HP

 143

400V-50Hz Electric Three-Phase (with clockwise-anti-clockwise rotation switch)

4 kW – 5,5 HP

 112
Data sheet

DESCRIPTION

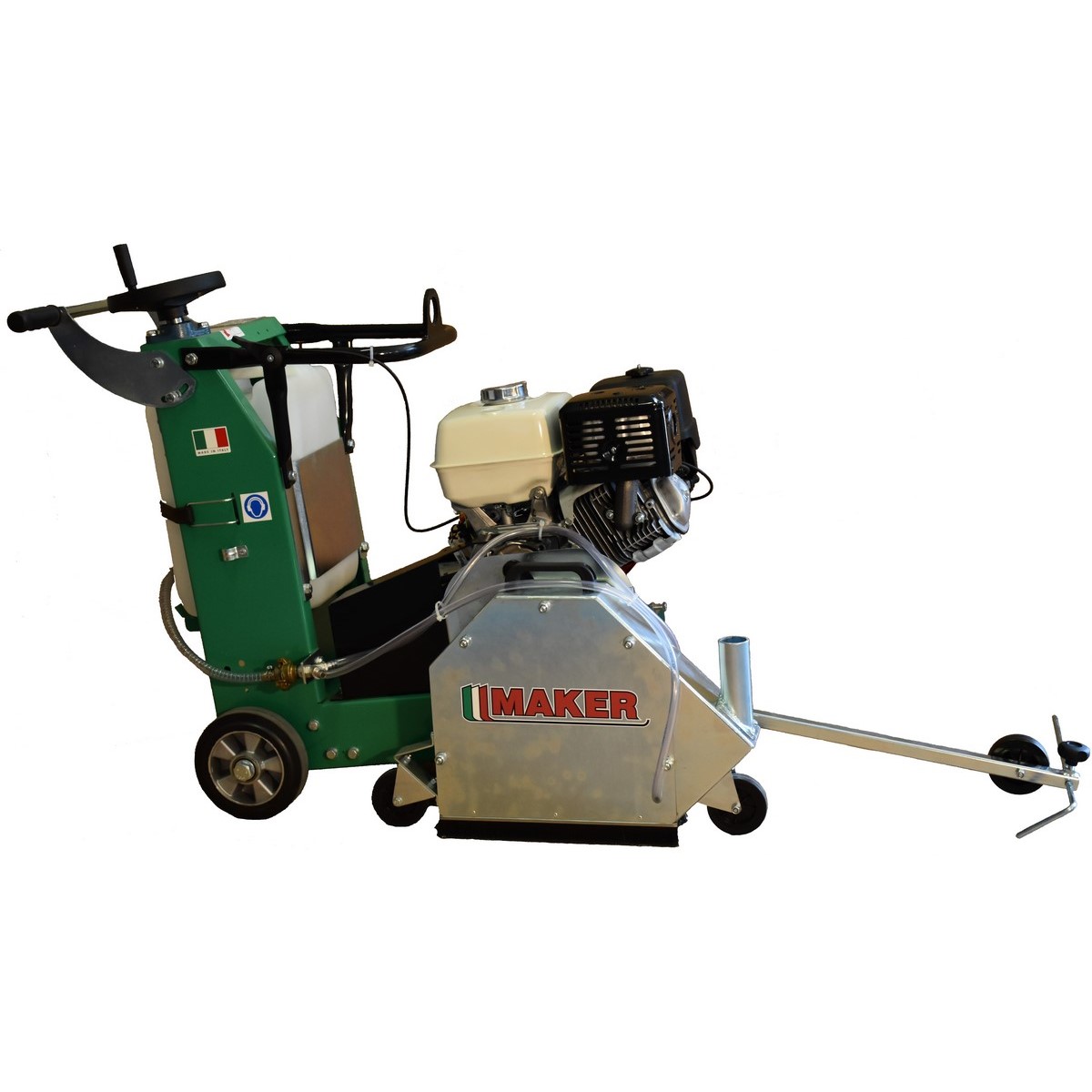

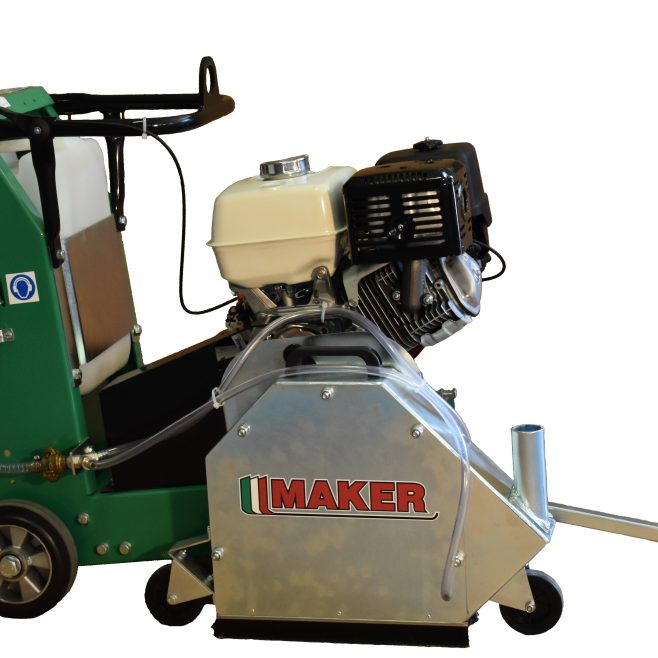

Floor cutter with anticlockwise rotation of the diamond blade ideal for having a clean seat for dry or wet cutting. It is suitable for industrial pavers when cutting expansion joints and for companies that carry out excavations on asphalt for the laying of optical fibers.

Max diameter disc (mm)400
Disc hole diameter (mm)25,4
Max cutting depth (mm)140
Plastic water tank capacity (l)30
Sound emission level (dB)107
Dimensions (LxWxH in mm)1200x620x1000

Recoil starter
Operating advancement by hand
Cutting depth adjustment by handwheel with locking system
Adjustable handle
Engine guard with attachment point for lifting
Special blade guard with connection for vacuum cleaner in dry cutting
Disc water cooling system on both sides
Parking brake
Cutting adjustment index
OPTIONAL
Diamond blade for asphalt and concrete
Ø450 mm blade guard to suck up dust in dry cutting
Spacer (thickness 4-5-6-8-10) for mounting 2 discs
STANDARD KIT
Technical documentation and CE certificate
