TM150/200

Code Engine Type Power Weight (kg)

230V-50Hz Electric Single-Phase

2,2 kW – 3 HP

 152

400V-50Hz Electric Three-Phase

3 kW – 4 HP

 152

230V-50Hz Electric Single-Phase

2,2 kW – 3 HP

 163

400V-50Hz Electric Three-Phase

3 kW – 4 HP

 163
Data sheet

DESCRIPTION

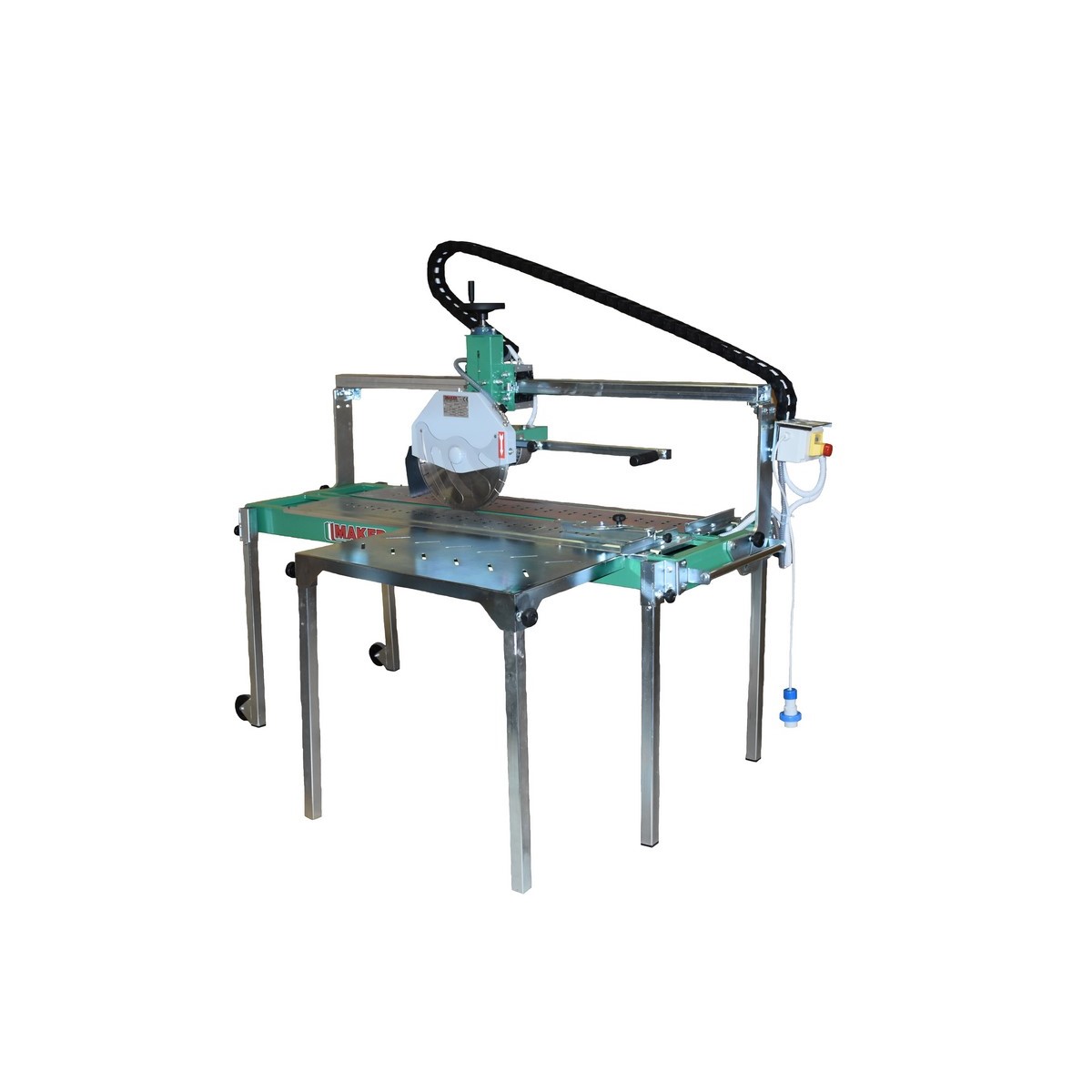

The MAKER TM150 / 200 construction bridge saws are used when a machine with superior cutting length performance is required on the construction site or in laboratories. They have a steel sheet frame with built-in tub and immersion pump for recycling; screw cutting height adjustment with handwheel to double the height by turning the piece; manual advancement of the cutting head or on request, semi-automatic advancement with lateral handwheel.

TM150TM200
Max blade diameter (mm)400400
Blade hole diameter (mm)25,425,4
Max cutting depth (mm)140140
Cutting length (mm)14001700
Sheet tub capacity (l)100120
Sound emission level (dB)8787
Dimensions (LxWxH in mm)2040x720x1550 (850)2340x720x1550 (850)

Direct drive
Water cooling system on the front of the blade to avoid any risk of overheating
Handwheel to adjust the blade height for cutting
Splash guard mat
Tilt from 0 to 45 °
360° adjustable square
Immersion electric pump
Removable legs (2 fixed and 2 on wheels) to facilitate use by a single operator
OPTIONAL
Ø 450 mm Blade guard (H=165 mm)
Side banquet TM/TL (LxW) 800×500 mm
Folding legs kit on wheels TM/TL
Semi-automatic advancement kit with handwheel
STANDARD KIT
Technical documentation and CE certificate
