TPL70/90

Code Engine Type Power Weight (kg)

230V-50Hz Electric Single-Phase

2,2 kW – 3 HP

 80

400V-50Hz Electric Three-Phase

3 kW – 4 HP

 80
Data sheet

DESCRIPTION

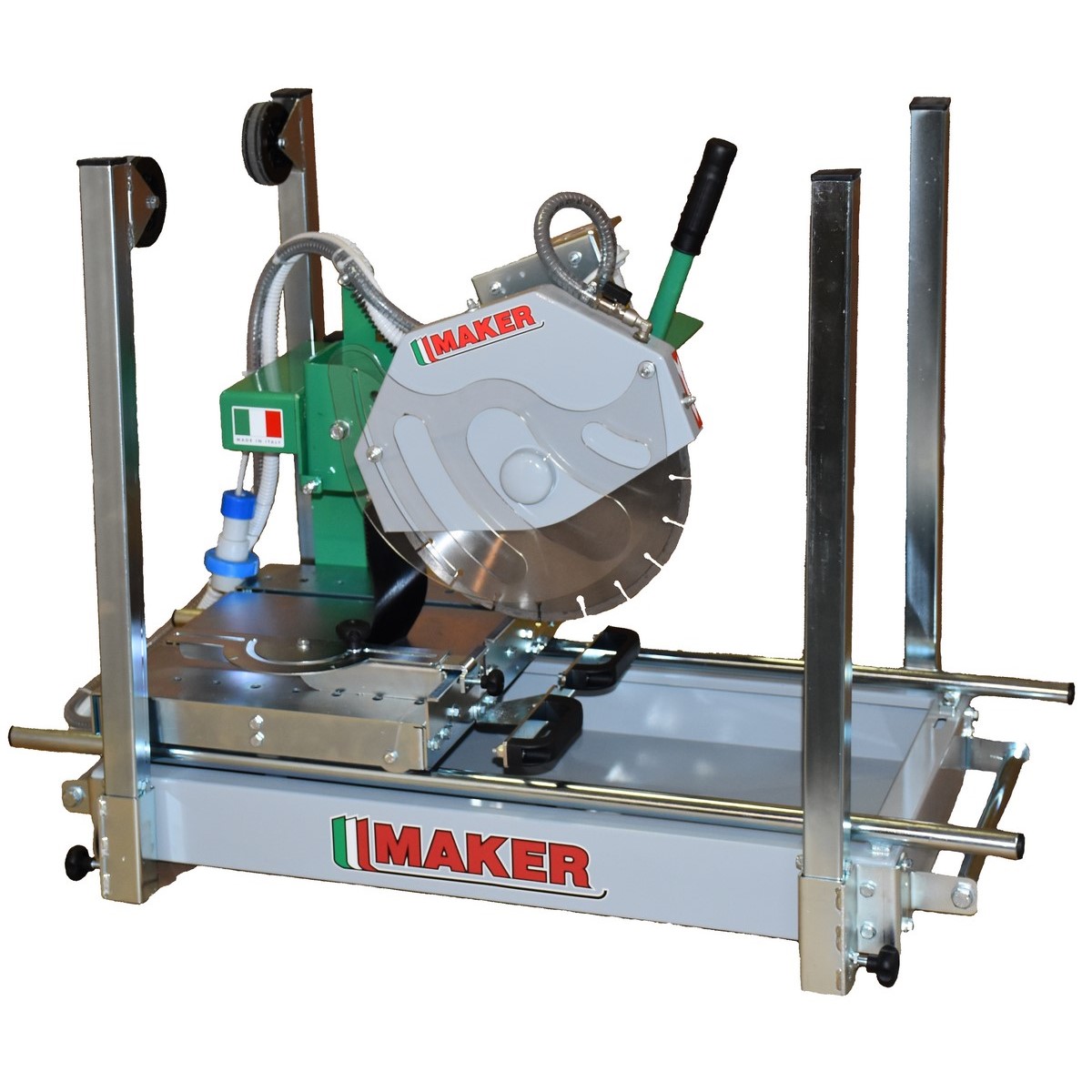

Pendular line sawing machine suitable for fast and precise cutting of bricks, stones, refractories, etc. for the construction site and the installer. It has a steel sheet frame with a 45-liter built-in tub and an electric pump for recycling; manual advancement of the carriage that slides on watertight bearings and manual progressive adjustment of the cutting height.

Max blade diameter (mm)350
Blade hole diameter (mm)25,4
Max cutting depth (mm)110
Worktop length (mm)400
Cutting length (mm)650 (800)
Sheet tub capacity (l)45
Sound emission level (dB)112
Dimensions (LxWxH in mm)1100x700x1100

Direct drive
Handle to adjust the blade height for cutting
Water cooling system on the front of the blade to avoid any risk of overheating
Splash guard mat
Galvanized and sliding worktop
360° adjustable square
Immersion electric pump
Handle on both sides of the tub

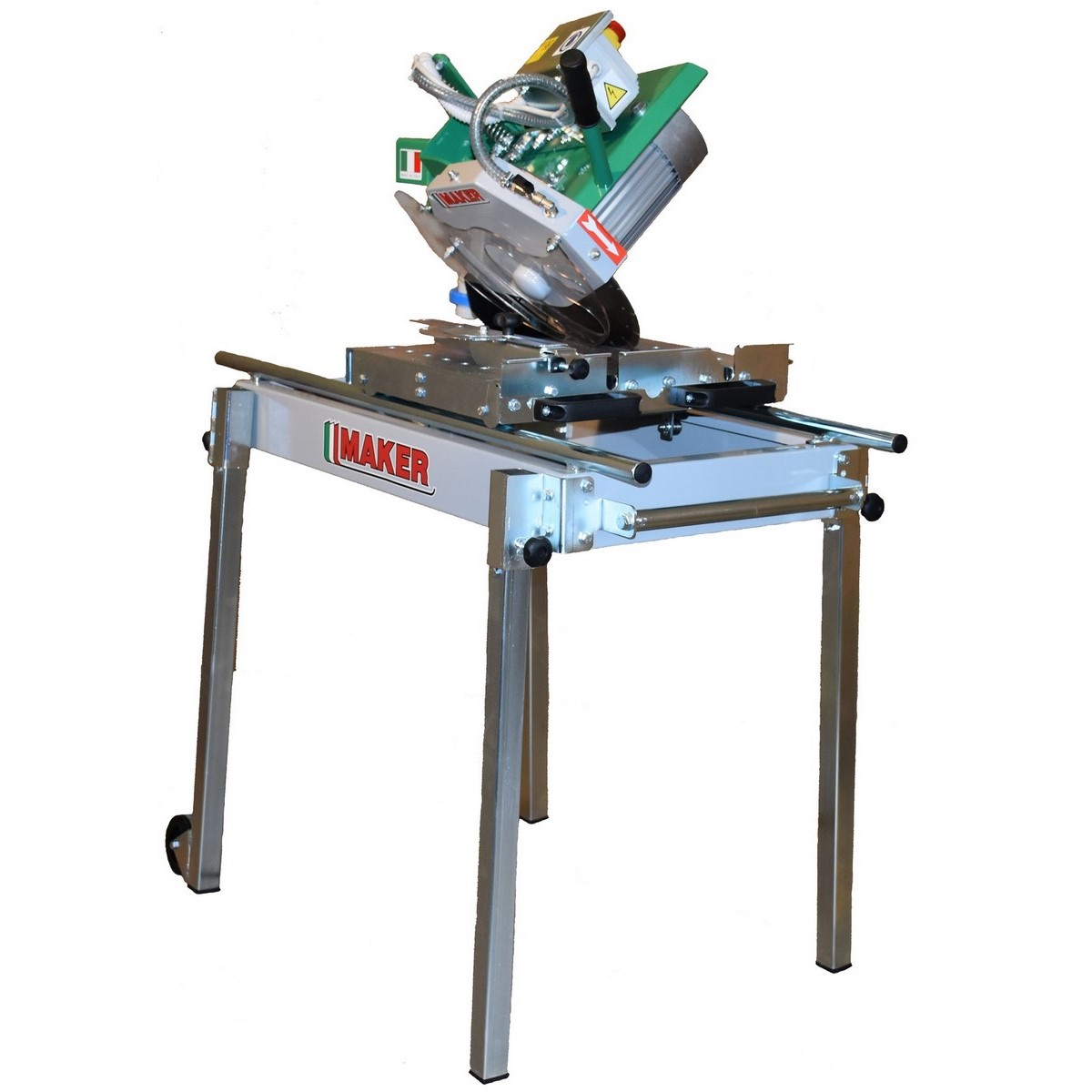

Folding legs (2 fixed and 2 on wheels) to facilitate use by a single operator
OPTIONAL
TPL90 Version with 850 mm cutting length
Folding legs version
Ø 400 mm Blade guard application (H=140 mm)
STANDARD KIT
Diamond blade
Technical documentation and CE
