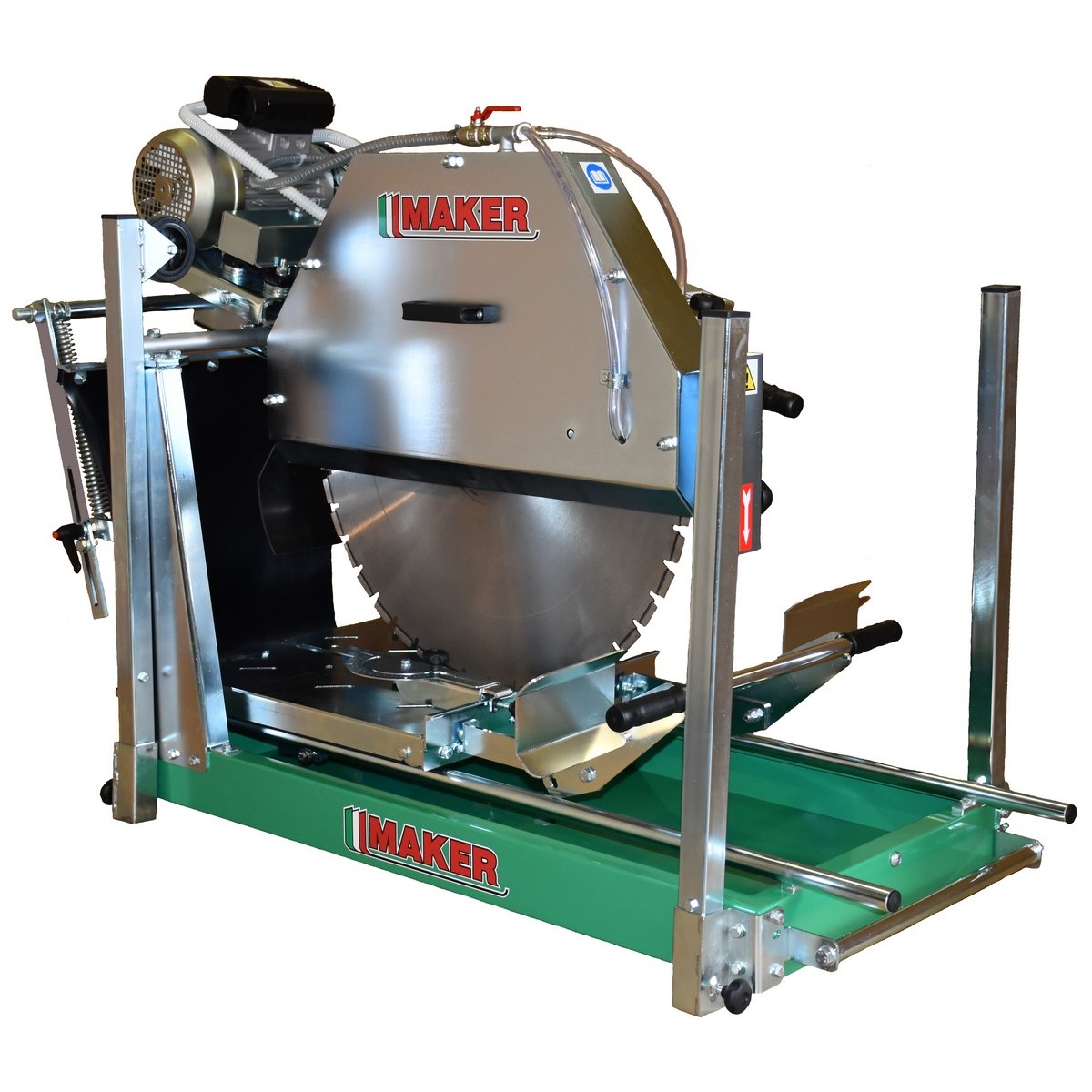

TPL750

DESCRIPTION
Pendular line sawing machine, it is easily maneuverable despite having larger dimensions, guaranteeing superior performance in terms of power and cutting speed on bricks, porphyry, stones, refractories, etc. It has a steel sheet frame with a built-in 70-liter tub and internal water pump; manual advancement of the carriage, which runs on watertight bearings.

Max blade diameter (mm)	750
Blade hole diameter (mm)	25,4
Max cutting depth (mm)	315
Cutting length (mm)	600
Sheet tub capacity (l)	70
Sound emission level (dB)	112
Dimensions (LxWxH in mm)	1600x740x1100 (1750)

Belt drive
Extendable handle to raise and lower the blade
Water cooling system on the front of the blade to avoid any risk of overheating
Sled plate to easily voltage of the belts
Splash guard mat
Rear protection
Adjustable square 360°
Immersion electric pump
Adjustable trolley handle with protection
Prolonged guide that also acts as a handle
Removable legs (2 fixed and 2 on wheels) to facilitate use by a single operator
STANDARD KIT
Technical documentation and CE
