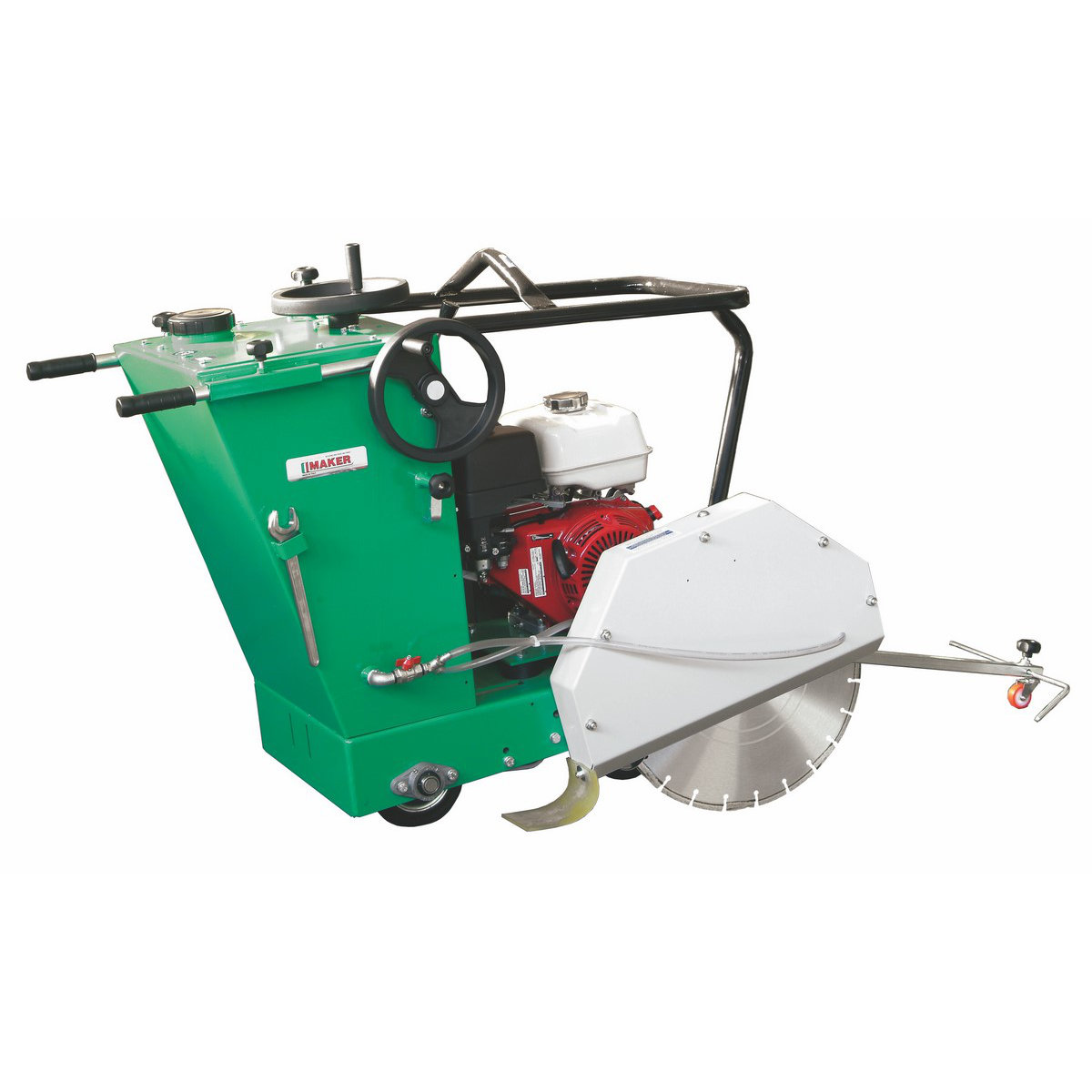

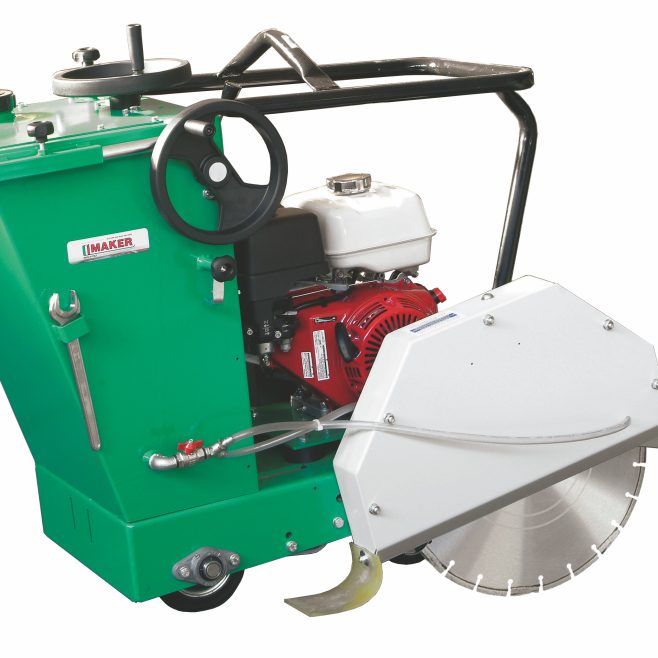

TS160

Code Engine Type Power Weight (kg)

CH440-3234 Kohler petrol

10,5 kW – 14 HP

 206

GX390 Honda petrol

8,7 kW – 11,7 HP

 204

GX630 Honda petrol (two-cylinder with electric starter)

15 kW – 20 HP

 236

400V-50Hz Electric Three-Phase

7,5 kW – 10 HP

 214
Data sheet

DESCRIPTION
It is particularly suitable for industrial pavers when cutting expansion joints, for repairing concrete surfaces and for companies that excavate asphalt when a machine with superior performance is required.
Double insulation in the electric version, complete with socket, plug and switch with thermal overload protector.

Max diameter disc (mm)500
Disc hole diameter (mm)25,4
Max cutting depth (mm)190
Steel cooling water tank capacity (l)60
Sound emission level (dB)110
Dimensions (LxWxH in mm)1250x650x1000

Recoil or electric starter
Semiautomatic advancement by hand
Cutting depth adjustment by handwheel with locking system
Adjustable handle
Engine guard with attachment point for lifting
Disc water cooling system on both sides
Rubber shock-absorber to reduce work vibrations
Cutting adjustment index
OPTIONAL
Diamond blade for asphalt and concrete
Blade guard Ø 600 mm (max cutting height 240 mm)
Lateral disc protection
Cutting depth adjustment kit with hydraulic pump
STANDARD KIT
Technical documentation and CE certificate
