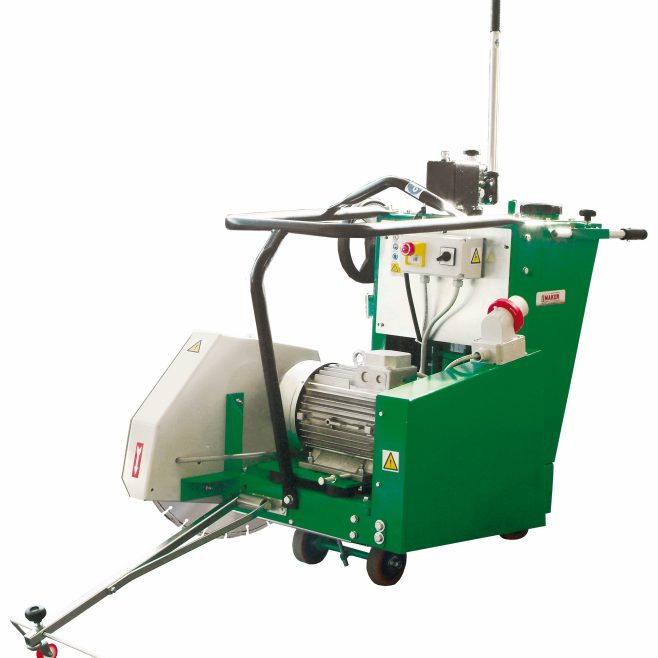

TS180

Code Engine Type Power Weight (kg)

GX690 Honda petrol (two-cylinder with electric starter)

16,5 kW – 22,1 HP

 277

KDW702 Kohler Diesel (two-cylinder with electric starter – liquid cooling)

11,4 kW – 15,4 HP

 290

400V-50Hz Electric Three-Phase

9,2 kW – 11 HP

 214
Data sheet

DESCRIPTION
It is suitable for industrial pavers that require machines of higher power to obtain a fast and precise cut, and for companies that excavate asphalt for medium and large-scale jobs.

Max diameter disc (mm)700
Disc hole diameter (mm)25,4
Max cutting depth (mm)270
Steel cooling water tank capacity (l)60
Sound emission level (dB)110
Dimensions (LxWxH in mm)1370x750x1100

Electric starter
Semiautomatic advancement by hand
Adjustable handle
Adjustment cutting depth by hand hydraulic pump
Engine guard with attachment point for lifting
Disc water cooling system on both sides
Rubber shock-absorber to reduce work vibrations
Cutting adjustment index
Swivel wheel for agile movement of the machine in the working direction
OPTIONAL
Diamond blade for asphalt and concrete
Blade guard Ø 800 mm (max cutting height 320 mm)
Lateral disc protection
Hydraulic automatic advancement kit
STANDARD KIT
Technical documentation and CE certificate
