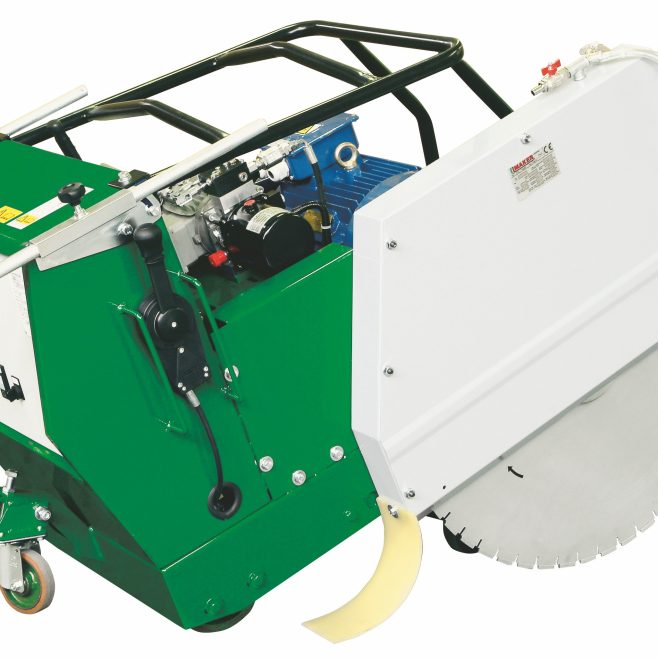

TS250
TS250 - Image 2

TS250

Code Engine Type Power Weight (kg)

KDW1003 Kohler Diesel (electric starter – three-cylinder – liquid cooling)

17,5 kW – 23,7 HP

 795

KDI 1903M Kohler Diesel (electric starter – three-cylinder – liquid cooling)

31 kW – 42 HP

 857

400V-50Hz Electric Three-Phase

22 kW – 30 HP

 640

400V-50Hz Electric Three-Phase

31 kW – 42 HP

 750
Data sheet

DESCRIPTION
Powerful floor cutter with high cutting capacity, carefully designed for maximum operation and effectiveness. Perfect for road works, heavy depth-of-cut work or medium and large sized jobs that require high productivity.

Max diameter disc (mm)1000
Disc hole diameter (mm)25,4
Max cutting depth (mm)405
Water tank capacity Diesel version (l)80
Sound emission level (dB)110
Dimensions (LxWxH in mm)1700x1000x1400

Electric starter
Automatic advancement by hydraulic variator
Adjustable handle
Safety lever with emergency STOP button
Cutting depth adjustment with electro-hydraulic control unit with variable speed button control
Electric starter panel with luminous LEDs complete with hour meter
Closed engine guard with two attachment point for lifting
Auto-priming water pump for diamond blades cooling
Disc water cooling system on both sides
Cutting adjustment index
Two swivel wheels for agile movement of the machine in the working direction
OPTIONAL
Diamond blade for asphalt and concrete
Blade guard Ø 1200 mm (max cutting height 500 mm)
STANDARD KIT
Technical documentation and CE certificate
