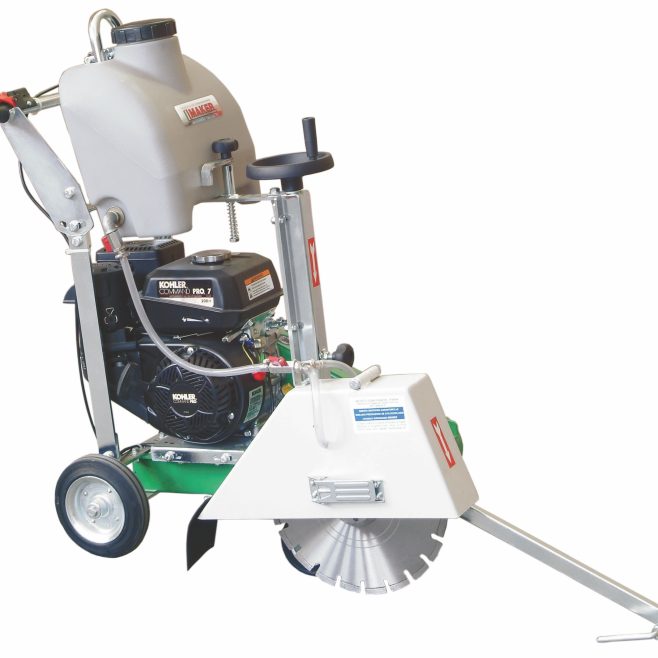

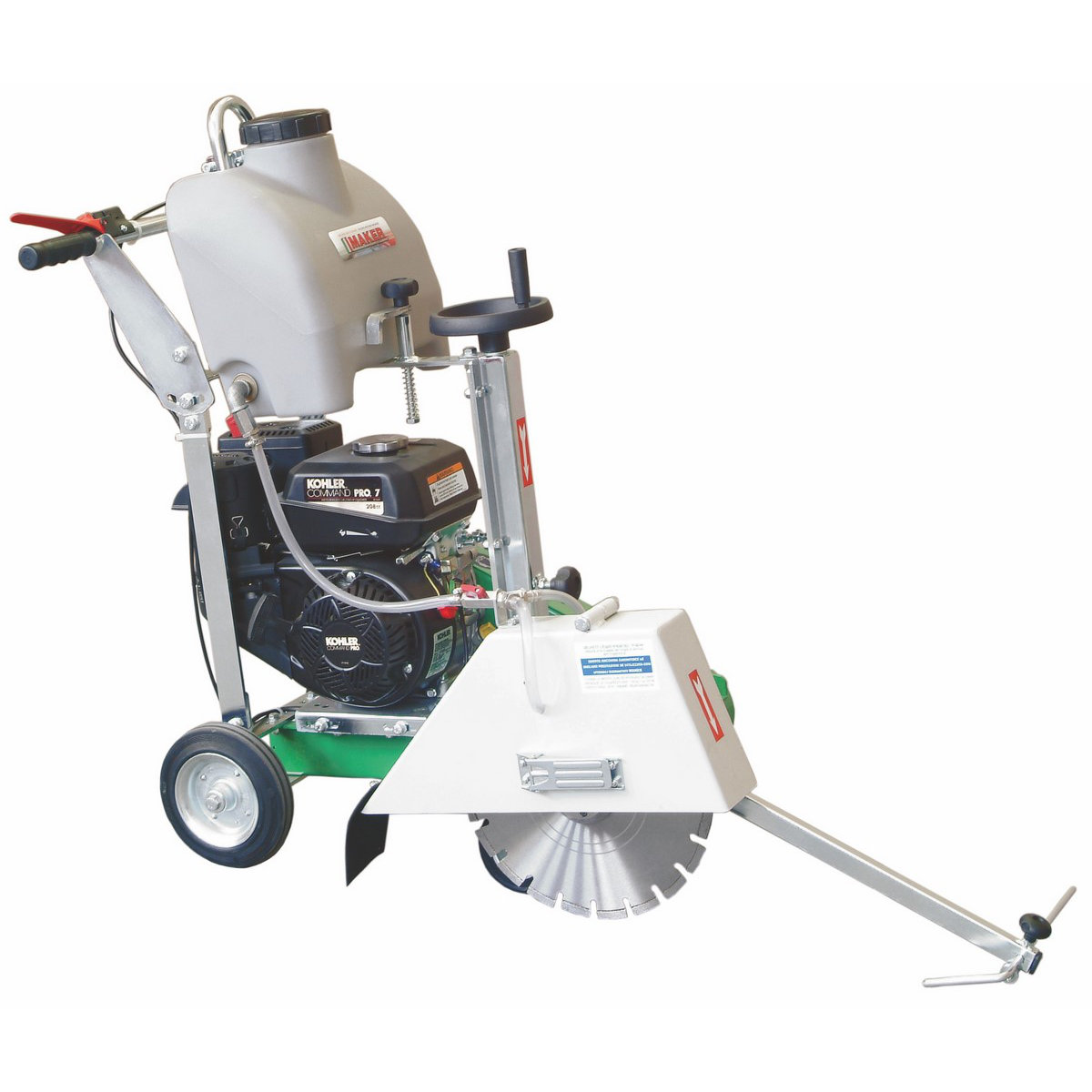

TS300

Code Engine Type Power Weight (kg)

CH270-3215 Kohler petrol

5,2 kW – 7 HP

 74

GX200 Honda petrol

4,3 kW – 5,8 HP

 73

230V-50Hz Electric Single-Phase

2,2 kW – 3 HP

 68
Data sheet

DESCRIPTION
Ideal for cutting jobs in very tight spaces, it is a simple, light and compact machine, easy to use and transport.

Max diameter disc (mm)350
Disc hole diameter (mm)25,4
Max cutting depth (mm)125
Plastic water tank capacity (l)14
Sound emission level (dB)105
Dimensions (LxWxH in mm)950x570x1000

Recoil starter
Operating advancement by hand
Cutting depth adjustment by handwheel with locking system
Adjustable and folding handle
Engine stop safety lever
Attachment point for lifting
Blade guard that can be opened for approaching the cut to the wall
Disc water cooling system on both sides
Cutting adjustment index
OPTIONAL
Diamond blade for asphalt and concrete
STANDARD KIT
Technical documentation and CE certificate
